Product Overview

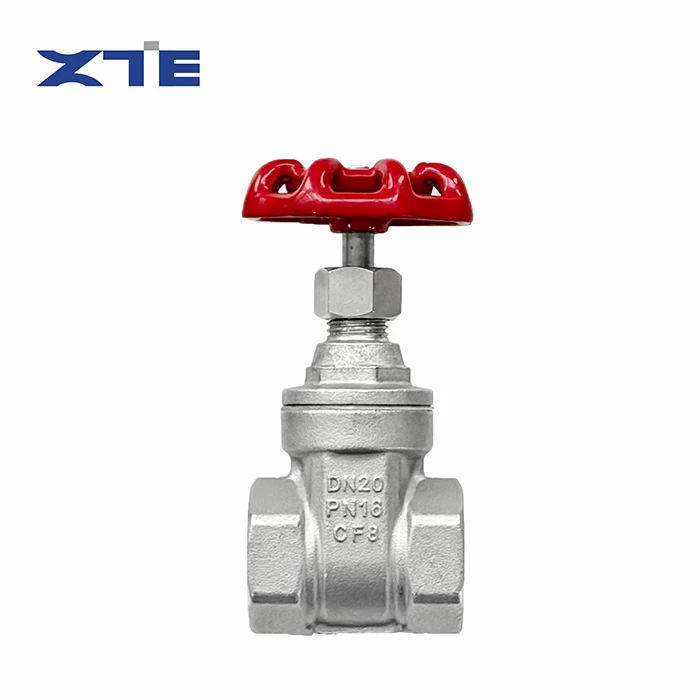

The Threaded Gate Valve is a miniature manual cut-off valve specially designed for small-bore pipeline systems. Different from check valves used for anti-backflow or ball valves used for frequent flow regulation, this threaded gate valve focuses on pure straight-through pipeline isolation. It adopts internal thread connection and wedge gate sealing structure, realizing complete medium cut-off and no-resistance full opening.
Manufactured from high-quality stainless steel, the valve body features compact integrated structure, precise thread matching and stable sealing performance. When fully opened, the internal flow channel is completely straight without shrinkage or turbulence, ensuring maximum fluid flow efficiency. When fully closed, it achieves tight bidirectional cut-off. Widely applied in domestic plumbing, gas pipelines and light industrial small-caliber pipe networks, it is the most reliable terminal switch valve for long-term static and stable pipeline operation.
Core Features & Unique Advantages
•Full Bore No Resistance Design — The internal straight-through flow channel is consistent with the pipe diameter. Unlike ball valves with partial channel obstruction, the threaded gate valve provides completely unobstructed flow, minimizing pipeline pressure loss and supporting high-flow medium transmission.
•Standard Thread Quick Connection — Equipped with precision BSP/NPT internal thread, allowing direct screwing installation without flanges, welding or extra accessories. It greatly reduces installation difficulty and construction cost for small-bore pipelines.
•Bidirectional Tight Cut-Off Performance — The wedge-type rigid gate plate fits the valve seat precisely, realizing bidirectional sealing without flow direction limitation. It effectively isolates medium and avoids pipeline residual flow leakage.
•Ultra-Compact Lightweight Structure — Miniature integrated body design occupies less pipeline space, perfectly suitable for narrow installation environments such as equipment built-in pipelines, wall-penetrating pipes and dense pipe layouts.
•Manual Stable Switching — Equipped with labor-saving handwheel and multi-turn lifting structure. The opening and closing stroke is uniform and stable, avoiding sudden pressure impact caused by rapid switch, protecting pipeline system safety.
•Anti-Corrosion & Hygienic Performance — Full stainless steel casting with smooth inner wall resists rust, scaling and medium erosion. No secondary pollution occurs, fully meeting drinking water and clean medium transportation standards.
•Long Service Life & Static Stability — Suitable for long-term fully open or fully closed static working state. No frequent switching fatigue loss, stable sealing performance after years of static operation, low failure rate.
•Self-Cleaning Flow Channel — Straight smooth runner prevents dirt deposition and impurity accumulation. The up-lifting gate plate can flush internal attachments during switching, keeping the valve interior clean all the time.
•Wide Working Condition Adaptability — Stable performance for water, natural gas, light oil and weak corrosive media, covering civil plumbing, commercial piping and light industrial pipeline systems.
Technical Specifications
•Product Name: Threaded Gate Valve

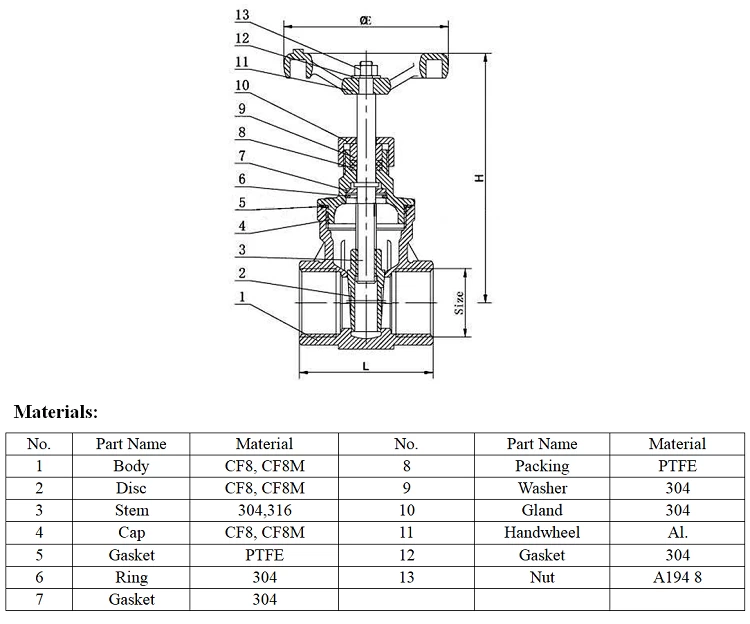

•Material: Stainless Steel 304 / 316
•Connection Type: Internal Thread (BSPT / NPT)
•Pressure Grade: PN16 / PN25
•Working Medium: Tap water, purified water, natural gas, light oil, weak corrosive medium
•Size Range: 1/2” ~ 2” (DN15 ~ DN50)
•Working Temperature: -20℃ ~ 180℃
•Operation Mode: Manual Handwheel
•Core Function: Pipeline full opening and full closing isolation cut-off
Application Scenarios
This threaded gate valve is widely used in small-bore pipeline systems requiring straight flow and reliable complete cut-off, focusing on static stable working conditions:
Residential & Civil Plumbing — Used for household main water pipes, branch water supply pipelines and heating branch pipes, serving as stable terminal switch valves for daily water supply isolation and maintenance.
Gas & Fuel Pipeline Systems — Ideal for indoor natural gas and light fuel small-caliber pipelines. The tight bidirectional cut-off performance ensures safe isolation during equipment maintenance and pipeline overhaul.
Light Industrial Pipeline Networks — Applied in factory auxiliary water pipes, compressed air pipelines and low-pressure fluid transmission lines, providing stable long-term pipeline isolation protection.
Mechanical Equipment Supporting Pipes — Suitable for small-scale equipment cooling water pipelines and auxiliary fluid pipelines. The compact thread structure adapts to equipment internal narrow installation space.
Commercial Building Pipeline Projects — Widely used in office buildings, shopping malls and hotel small-diameter water supply and circulation pipelines, supporting long-term stable building water system operation.
Why Choose ZTE VALVE Threaded Gate Valve
ZTE VALVE focuses on the manufacturing of high-precision small-bore threaded industrial valves. Each threaded gate valve undergoes strict thread matching testing, full-pressure sealing inspection and opening-closing stroke detection before delivery. We adopt optimized wedge sealing structure and smooth full-bore flow channel design to ensure no leakage cut-off and maximum flow efficiency. With stable quality, affordable price and complete engineering matching experience, our threaded gate valves are widely recognized by global plumbing contractors, equipment manufacturers and pipeline engineering customers.
