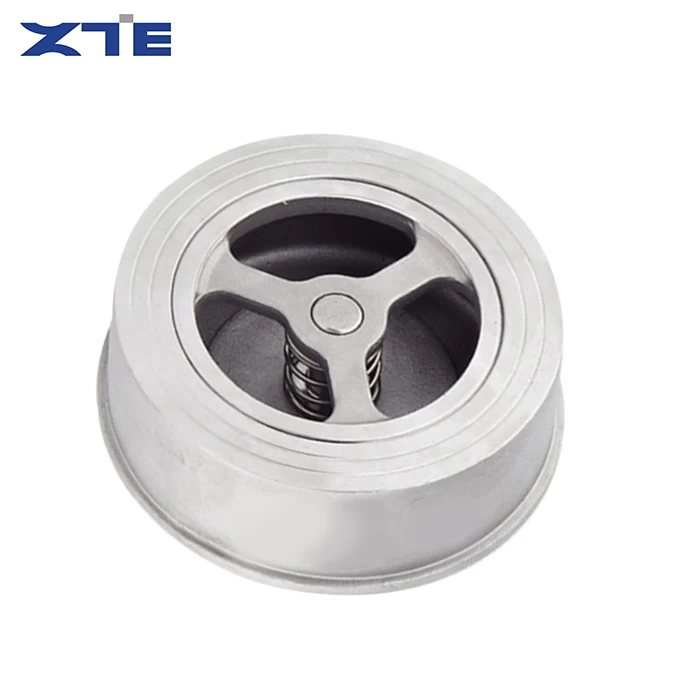

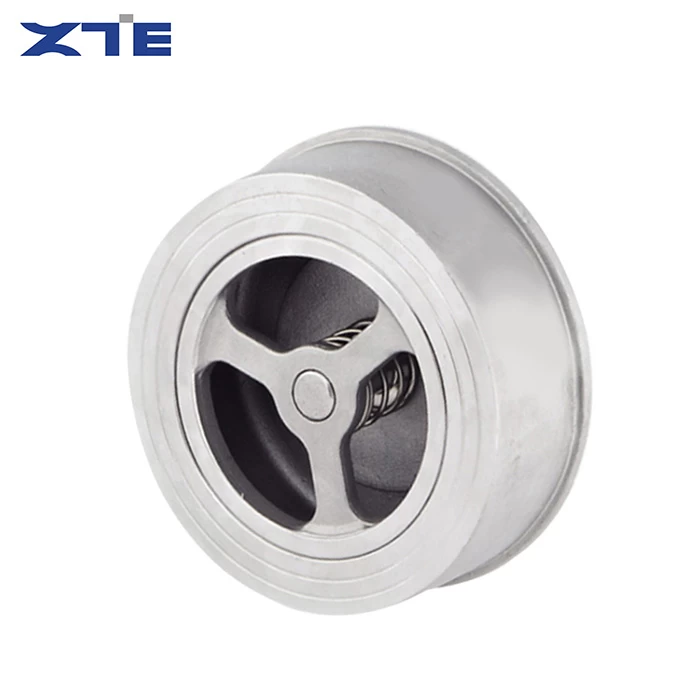

Spring Lift Wafer Check Valve

Product Overview
The Spring Lift Wafer Check Valve is a compact, spring-assisted one-way flow control valve specially designed for vertical installation and noise-sensitive pipeline systems. Different from swing disc and traditional gravity lift check valves, this wafer-type check valve relies on precise spring elastic force to control the lifting and resetting of the valve core, realizing ultra-fast closing action without relying solely on medium gravity.
With an ultra-thin wafer body structure, the valve can be directly clamped between two pipe flanges, saving pipeline installation space greatly. The built-in high-precision compression spring enables the valve core to close instantly once the medium flow stops or reverses, effectively eliminating water hammer, pipeline vibration and running noise. Made of high-quality stainless steel, this spring lift check valve delivers stable sealing, anti-corrosion performance and fatigue resistance, suitable for long-term cyclic operation of various clean medium pipelines.
Unique Product Features & Core Advantages
•Spring-Loaded Fast Closing Structure — Equipped with high-strength stainless steel compression spring, the valve core achieves rapid reset and shutoff. It avoids the delayed closing defect of gravity check valves and greatly improves pipeline safety during flow stop and startup.
•Professional Silent & Anti-Water Hammer Design — The spring buffering structure weakens closing impact force, realizing silent operation and effectively suppressing water hammer and pipeline resonance. It is the best choice for noise-sensitive building and precision equipment pipelines.
•Ultra-Compact Wafer Thin Body — Slim wafer-type overall structure requires no extra flange space. It is lightweight and space-saving, perfectly solving the installation difficulty of narrow pipeline intervals and dense pipe layout.
•Vertical Installation Priority — Specially optimized for vertical pipeline upward flow, completely avoiding disc jamming and failure caused by gravity offset. It also supports horizontal installation with stable and reliable operation.
•Low Flow Resistance & High Efficiency — The streamlined vertical flow channel has no blocking dead zone. The valve core lifts smoothly under medium pressure, ensuring smooth fluid transmission and low pressure loss.
•Excellent Fatigue & Corrosion Resistance — All internal parts are made of stainless steel, with spring anti-fatigue treatment. It resists rust, oxidation and medium erosion, adapting to long-term frequent opening and closing cycles.
•Precision No Leakage Sealing — The valve core and valve seat adopt precision grinding fit and flexible sealing cooperation. It achieves reliable tight shutoff and no backflow under rated working pressure.
•No Directional Flow Deviation — Vertical lifting structure ensures stable stress balance during operation, no deflection or jamming, greatly reducing failure rate and maintenance frequency.
•Wide Medium & Temperature Adaptability — Suitable for water, oil, gas and weak corrosive media. It works stably in conventional and low-temperature environments with strong environmental adaptability.
•Self-Cleaning Internal Structure — Polished smooth internal flow channel and gap-free lifting structure prevent sediment, scale and tiny impurities from accumulating inside the valve. Effectively avoid blockage and stuck valve core issues during long-term operation, reducing pipeline system failure risks.
•Strong Pressure Impact Resistance — Optimized integral valve body forging process enhances overall structural rigidity. It can withstand instantaneous pipeline pressure surge and frequent flow impact, maintaining stable working performance without deformation or loosening.
•Universal Flange Matching — Standard wafer size design perfectly matches GB, DIN, JIS, ANSI global standard flanges, no need for adapter fittings. It supports seamless installation for different regional pipeline projects with strong universal compatibility.
•Maintenance-Free Long-Term Operation — Simple and integrated internal assembly structure with fewer vulnerable parts. The high-elastic anti-fatigue spring maintains stable reset performance for a long time, no regular lubrication or disassembly maintenance required, lowering overall operational costs.
•Strict Industrial Grade Quality Control — Every finished valve undergoes multi-tests including spring elasticity detection, tightness test, full-cycle opening and closing fatigue test, ensuring consistent performance and long service life in complex industrial working conditions.

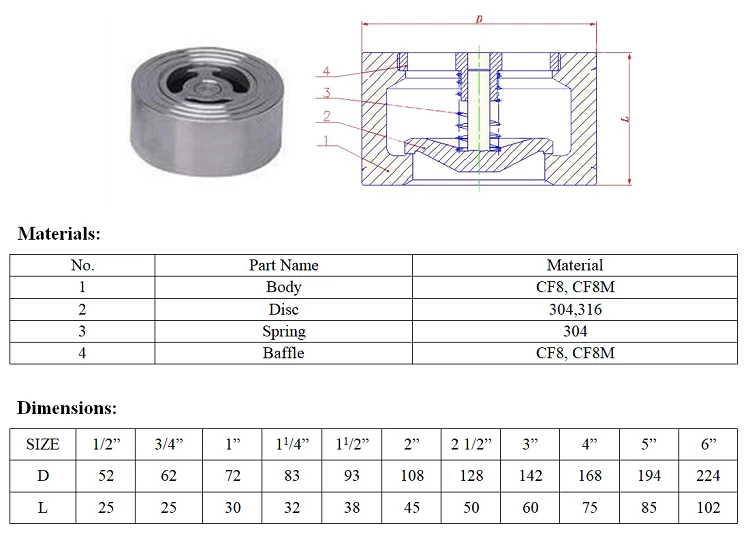

Technical Specifications
•Product Name: Spring Lift Wafer Check Valve
•Material: Premium Stainless Steel CF8 / CF8M
•Connection Type: Wafer Clamp Type
•Pressure Grade: PN10, PN16, PN25
•Working Medium: Water, oil, gas, light corrosive media
•Size Range: DN20 ~ DN200
•Working Temperature: -30℃ ~ 180℃
•Core Structure: Spring-assisted vertical lift
•Installation Mode: Vertical (priority) / Horizontal
•Key Performance: Fast closing, silent, anti-water hammer, compact
Application Scenarios & Industry Coverage
This spring lift wafer check valve is widely used in engineering projects that require fast anti-backflow, silent operation and limited installation space, especially suitable for vertical pipeline systems:
Building HVAC & Plumbing Systems — Ideal for central air conditioning circulating water pipelines, high-rise building vertical water supply pipes and domestic water circulation systems. It eliminates pipeline noise and water hammer problems in high-rise water supply.
Industrial Water Treatment Lines — Applied in purified water equipment, circulating water systems and filtration pipeline terminals. Fast spring closing effectively protects water pump equipment from backflow impact damage.
Petroleum & Chemical Pipelines — Suitable for low-viscosity oil and light chemical medium transmission pipelines. Stable one-way sealing prevents medium backflow and pipeline cross-contamination.
Fire Protection Pipeline Systems — Used for vertical fire water supply pipes to ensure rapid shutoff after pipeline pressure relief, maintaining pipe network pressure and improving fire safety system stability.
Mechanical Equipment Supporting Pipelines — Perfect for compact equipment built-in pipelines and mechanical cooling circulation systems. The ultra-thin wafer structure adapts to equipment internal narrow installation space.
Public & Municipal Pipe Networks — Widely used in municipal water supply branch pipes, community water supply systems and park facility pipeline projects for stable one-way flow protection.
Why Choose ZTE VALVE Spring Lift Wafer Check Valve
ZTE VALVE specializes in the production of high-precision compact pipeline check valves. Every spring lift wafer check valve adopts precision casting and spring fatigue resistance testing. We strictly control the elastic coefficient of the spring and the matching tolerance of the valve core to ensure fast closing, silent operation and no leakage. Different from ordinary check valves, our spring-assisted structure solves the defects of slow closing and easy jamming. With reliable quality, flexible size customization and fast global delivery, our products are widely recognized by equipment manufacturers and engineering contractors.
