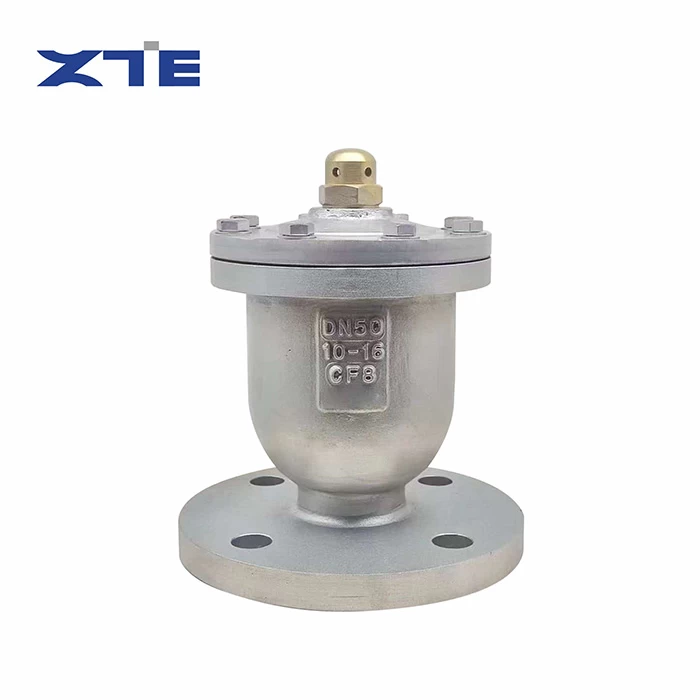

Flanged Single Orifice Automatic Air Vent Valve
Generate QR code
-
When You'll Get It:Sep 23 - Sep 27
-
Delivery Time: If in stocks, delivery within 24 hours; For customized batch orders, usually around 20 days.
Product description
Shipping & Return
Product Overview
The Flanged Single Orifice Automatic Air Vent Valve is a professional precision air venting component independently developed for closed-loop pressurized pipeline systems. Differentiated from multi-functional composite air valves with vacuum protection and large-flow exhaust functions, this single-orifice air vent valve focuses on refined and continuous air removal, specially designed to solve the hidden trouble of residual dissolved air and accumulated micro bubbles in long-term circulating pipelines.
Adopting integrated industrial flanged connection and high-sensitivity floating sealing mechanism, the valve realizes full-automatic unattended venting operation relying purely on water pressure and buoyancy changes without any external power source. During long-distance water transportation and closed-loop circulation operation, tiny air bubbles separated from the water medium will gather at the pipeline’s highest points. When air accumulates inside the valve cavity, the floating body automatically drops to open the vent channel and discharge air; after the air is completely exhausted, water fills the cavity to push the float upward for self-sealing, effectively preventing water leakage. Compact in structure and stable in performance, this single-orifice air vent valve is an essential precision accessory to optimize pipeline circulation efficiency, eliminate air resistance and reduce system operation failure rate.
Core Features & Advantages
•Precision Single-Orifice Targeted Venting — Adopts exclusive single-port refined venting structure, focusing on removing scattered micro bubbles and residual dissolved air that are difficult to eliminate by conventional valves. It achieves thorough air purification for closed circulating pipelines without causing pressure loss.
•Industrial Standard Flanged Connection — Equipped with integral PN10/PN16 standard flange, featuring large contact area, uniform stress and firm installation. It effectively resists pipeline vibration and pressure impact, solving the loosening and leakage problems of threaded air vents in long-term operation.
•Pure Mechanical Fully Automatic Operation — Built with high-precision floating sealing assembly, automatically sensing air and water level changes inside the pipeline. The whole venting and sealing process is completed intelligently, supporting continuous stable operation without manual supervision.
•No Leakage Sealing Performance — Optimized curved floating body and high-fit sealing surface achieve seamless closing after air venting. It maintains reliable tightness under rated working pressure, completely avoiding medium dripping and leakage.
•Anti-Scaling & Anti-Corrosion Valve Body — Made of high-quality industrial stainless steel, the integral casting body features smooth inner wall, excellent anti-scaling, rust-proof and oxidation resistance. It adapts to various complex water quality and outdoor harsh working environments.
•Professional Closed-Loop System Adaptation — Designed for closed heating, cooling and process water circulation systems. It continuously eliminates internal air accumulation, solves pipeline air lock, flow attenuation and operation noise problems, and improves system heat exchange and transmission efficiency.
•Simple Structure & Low Maintenance — Streamlined internal structure with fewer vulnerable parts and stable mechanical coordination. The detachable top cover design supports rapid on-site cleaning and component inspection, greatly reducing daily maintenance difficulty and cost.
•Ultra-Space-Saving Vertical Installation — Compact vertical layout with small floor area, perfectly suitable for narrow installation spaces such as pipeline high points, turning sections and terminal positions of various pipe networks.
Technical Specifications
•Product Name: Flanged Single Orifice Automatic Air Vent Valve
•Body Material: High-Grade Industrial Stainless Steel
•Connection Standard: PN10 / PN16 Flanged Connection
•Applicable Caliber: DN25 - DN100
•Rated Working Pressure: 1.0MPa - 1.6MPa
•Working Temperature Range: 0℃ - 80℃
•Applicable Medium: Tap water, heating hot water, chilled water, industrial clean circulating water
•Working Principle: Buoyancy induction automatic venting & self-sealing
•Core Function: Continuous micro bubble removal & residual air venting
•Installation Mode: Vertical installation at pipeline highest points
Professional Application Scenarios
This industrial single-orifice flanged air vent valve is specially optimized for closed-loop pressurized pipeline systems, widely used in fine pipeline pressure stabilization and air purification scenarios in multiple industries:
Central Heating Pipeline Systems — Installed at high points of urban community and industrial plant heating pipelines to continuously eliminate micro air bubbles inside hot water circulation lines, prevent air lock heating failure and improve indoor heating uniformity.
Commercial Building HVAC Water Circulation — Applied to central air-conditioning chilled water and cooling water closed-loop pipelines of shopping malls, office buildings and hotels, reducing pipeline operation noise and improving refrigeration and heat exchange efficiency.
Municipal Fine Water Supply Pipe Networks — Used in urban secondary water supply and residential district water supply pipelines to remove residual air in pipe networks, stabilize terminal water pressure and improve user water experience.
Industrial Supporting Circulating Water Systems — Suitable for equipment cooling water and auxiliary process water pipelines in manufacturing workshops, ensuring stable circulating water flow and avoiding equipment operation abnormality caused by air accumulation.
Green Landscape Water Circulation Projects — Deployed in park landscape water and recycled water circulation pipelines to eliminate pipeline air resistance, maintain stable water circulation and extend the service life of water supply equipment.
Why Choose ZTE VALVE Flanged Single Orifice Automatic Air Vent Valve
ZTE VALVE focuses on the R&D and production of precision pipeline air venting and pressure stabilizing accessories. Every flanged single orifice automatic air vent valve undergoes strict hydraulic pressure test, venting efficiency detection and tightness inspection before leaving the factory. Different from multi-functional composite air valves with complex structure and high cost, this product is professionally positioned in fine micro-air removal of closed-loop pipelines, with targeted functions, simpler structure and higher cost performance. Adopting industrial stainless steel integral casting and high-precision floating sealing technology, it ensures sensitive venting, reliable sealing and long-term trouble-free operation. It is the preferred professional supporting product for building HVAC, municipal water supply, industrial heating and circulating water pipeline fine operation projects.
The Flanged Single Orifice Automatic Air Vent Valve is a professional precision air venting component independently developed for closed-loop pressurized pipeline systems. Differentiated from multi-functional composite air valves with vacuum protection and large-flow exhaust functions, this single-orifice air vent valve focuses on refined and continuous air removal, specially designed to solve the hidden trouble of residual dissolved air and accumulated micro bubbles in long-term circulating pipelines.
Adopting integrated industrial flanged connection and high-sensitivity floating sealing mechanism, the valve realizes full-automatic unattended venting operation relying purely on water pressure and buoyancy changes without any external power source. During long-distance water transportation and closed-loop circulation operation, tiny air bubbles separated from the water medium will gather at the pipeline’s highest points. When air accumulates inside the valve cavity, the floating body automatically drops to open the vent channel and discharge air; after the air is completely exhausted, water fills the cavity to push the float upward for self-sealing, effectively preventing water leakage. Compact in structure and stable in performance, this single-orifice air vent valve is an essential precision accessory to optimize pipeline circulation efficiency, eliminate air resistance and reduce system operation failure rate.
Core Features & Advantages
•Precision Single-Orifice Targeted Venting — Adopts exclusive single-port refined venting structure, focusing on removing scattered micro bubbles and residual dissolved air that are difficult to eliminate by conventional valves. It achieves thorough air purification for closed circulating pipelines without causing pressure loss.
•Industrial Standard Flanged Connection — Equipped with integral PN10/PN16 standard flange, featuring large contact area, uniform stress and firm installation. It effectively resists pipeline vibration and pressure impact, solving the loosening and leakage problems of threaded air vents in long-term operation.
•Pure Mechanical Fully Automatic Operation — Built with high-precision floating sealing assembly, automatically sensing air and water level changes inside the pipeline. The whole venting and sealing process is completed intelligently, supporting continuous stable operation without manual supervision.
•No Leakage Sealing Performance — Optimized curved floating body and high-fit sealing surface achieve seamless closing after air venting. It maintains reliable tightness under rated working pressure, completely avoiding medium dripping and leakage.
•Anti-Scaling & Anti-Corrosion Valve Body — Made of high-quality industrial stainless steel, the integral casting body features smooth inner wall, excellent anti-scaling, rust-proof and oxidation resistance. It adapts to various complex water quality and outdoor harsh working environments.
•Professional Closed-Loop System Adaptation — Designed for closed heating, cooling and process water circulation systems. It continuously eliminates internal air accumulation, solves pipeline air lock, flow attenuation and operation noise problems, and improves system heat exchange and transmission efficiency.
•Simple Structure & Low Maintenance — Streamlined internal structure with fewer vulnerable parts and stable mechanical coordination. The detachable top cover design supports rapid on-site cleaning and component inspection, greatly reducing daily maintenance difficulty and cost.
•Ultra-Space-Saving Vertical Installation — Compact vertical layout with small floor area, perfectly suitable for narrow installation spaces such as pipeline high points, turning sections and terminal positions of various pipe networks.
Technical Specifications
•Product Name: Flanged Single Orifice Automatic Air Vent Valve
•Body Material: High-Grade Industrial Stainless Steel
•Connection Standard: PN10 / PN16 Flanged Connection
•Applicable Caliber: DN25 - DN100
•Rated Working Pressure: 1.0MPa - 1.6MPa
•Working Temperature Range: 0℃ - 80℃
•Applicable Medium: Tap water, heating hot water, chilled water, industrial clean circulating water
•Working Principle: Buoyancy induction automatic venting & self-sealing
•Core Function: Continuous micro bubble removal & residual air venting
•Installation Mode: Vertical installation at pipeline highest points
Professional Application Scenarios
This industrial single-orifice flanged air vent valve is specially optimized for closed-loop pressurized pipeline systems, widely used in fine pipeline pressure stabilization and air purification scenarios in multiple industries:
Central Heating Pipeline Systems — Installed at high points of urban community and industrial plant heating pipelines to continuously eliminate micro air bubbles inside hot water circulation lines, prevent air lock heating failure and improve indoor heating uniformity.
Commercial Building HVAC Water Circulation — Applied to central air-conditioning chilled water and cooling water closed-loop pipelines of shopping malls, office buildings and hotels, reducing pipeline operation noise and improving refrigeration and heat exchange efficiency.
Municipal Fine Water Supply Pipe Networks — Used in urban secondary water supply and residential district water supply pipelines to remove residual air in pipe networks, stabilize terminal water pressure and improve user water experience.
Industrial Supporting Circulating Water Systems — Suitable for equipment cooling water and auxiliary process water pipelines in manufacturing workshops, ensuring stable circulating water flow and avoiding equipment operation abnormality caused by air accumulation.
Green Landscape Water Circulation Projects — Deployed in park landscape water and recycled water circulation pipelines to eliminate pipeline air resistance, maintain stable water circulation and extend the service life of water supply equipment.
Why Choose ZTE VALVE Flanged Single Orifice Automatic Air Vent Valve
ZTE VALVE focuses on the R&D and production of precision pipeline air venting and pressure stabilizing accessories. Every flanged single orifice automatic air vent valve undergoes strict hydraulic pressure test, venting efficiency detection and tightness inspection before leaving the factory. Different from multi-functional composite air valves with complex structure and high cost, this product is professionally positioned in fine micro-air removal of closed-loop pipelines, with targeted functions, simpler structure and higher cost performance. Adopting industrial stainless steel integral casting and high-precision floating sealing technology, it ensures sensitive venting, reliable sealing and long-term trouble-free operation. It is the preferred professional supporting product for building HVAC, municipal water supply, industrial heating and circulating water pipeline fine operation projects.
