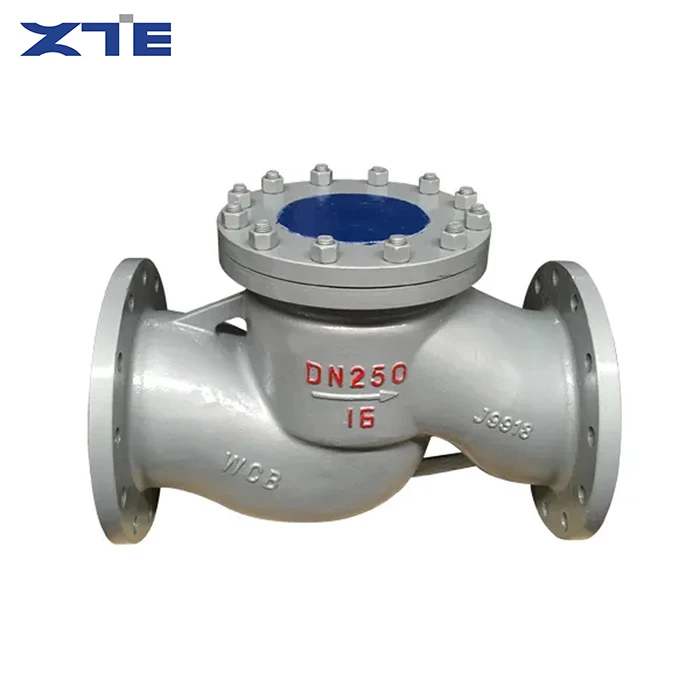

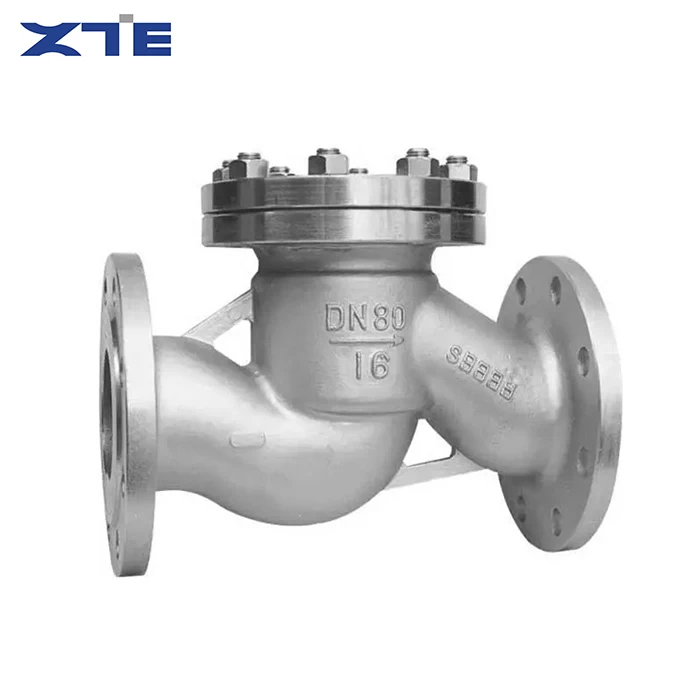

Flanged Lift Check Valve
Generate QR code
-
When You'll Get It:Sep 23 - Sep 27
-
Delivery Time: If in stocks, delivery within 24 hours; For customized batch orders, usually around 20 days.
Product description
Shipping & Return
Product Overview

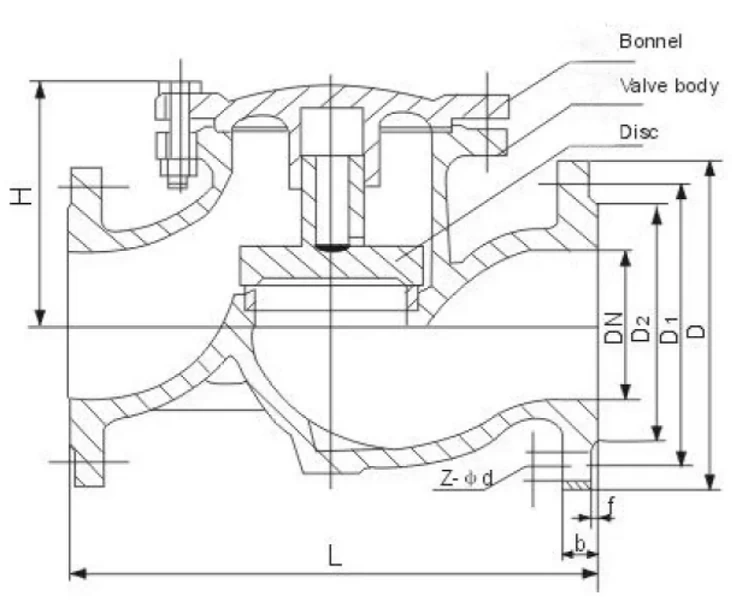

The Flanged Lift Check Valve is a precision one-way flow control valve independently developed by ZTE VALVE, designed specifically for high-pressure, high-speed and stable fluid pipeline working conditions. Different from swing check valves, this lift-type check valve adopts a vertical up-and-down lifting disc structure, which relies on fluid pressure to lift the valve disc for medium circulation and uses gravity and reverse medium pressure to achieve automatic closing.
Manufactured from high-purity stainless steel, the valve body features integrated forging, compact internal structure and ultra-high sealing accuracy. Equipped with standard flange connection, it is suitable for vertical and horizontal pipeline installation. The lift check valve delivers more sensitive response, better pressure resistance and tighter sealing performance than conventional swing check valves, making it the preferred anti-backflow valve for high-precision industrial pipeline systems.
Core Product Features & Unique Advantages
•Unique Vertical Lift Structure — Adopts vertical lifting valve disc design with precise movement track, no swing deviation. The opening and closing action is more sensitive and stable, perfectly adapting to high-speed fluid flow and frequent pressure fluctuation working conditions.
•Ultra-Tight no Leakage Sealing — Matched with precision lapped sealing surface and high-performance sealing components, the valve disc fits closely with the valve seat. It achieves complete no leakage under rated pressure, effectively avoiding medium backflow and pipeline pressure loss.
•Superior High-Pressure Resistance — Integrally forged stainless steel valve body with thickened wall structure, supporting PN10, PN16, PN25 and PN40 multi-pressure grades. It can operate stably for a long time in high-pressure industrial pipelines without deformation or failure.
•Low Vibration & Quiet Operation — Compared with swing check valves, the lift structure has no swing impact during operation, effectively reducing pipeline vibration, noise and water hammer phenomenon, protecting pipeline and supporting equipment.
•Strict Material Craftsmanship — Made of high-quality stainless steel with excellent anti-corrosion, oxidation and rust resistance. It is compatible with clean water, oil, gas and weak corrosive media, adapting to complex industrial working environments.
•Dual Installation Methods — Supports both horizontal and vertical pipeline installation with strong adaptability. Standard flange connection ensures firm installation, convenient disassembly and easy daily inspection.
•Durable & Low Maintenance — Simple internal transmission structure, fewer vulnerable parts, stable mechanical performance and long service life. It greatly reduces later maintenance frequency and engineering operation costs.

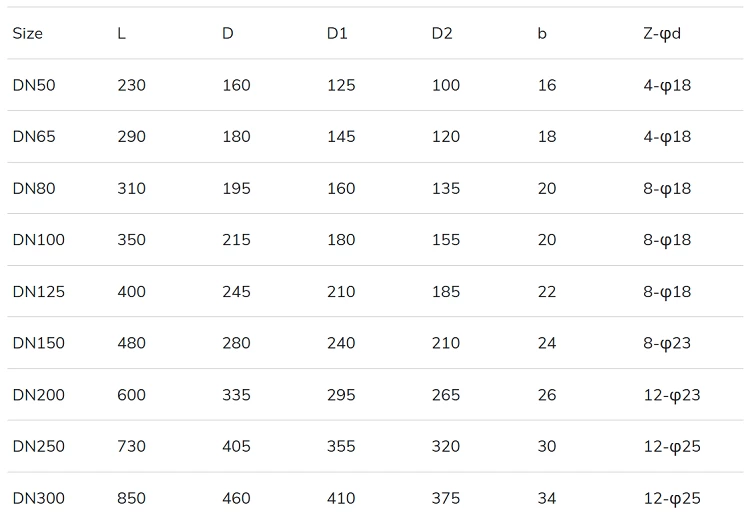

Technical Specifications
•Product Name: Flanged Lift Check Valve
•Material: High-quality Stainless Steel (CF8, CF8M)
•Connection Type: Standard Flange
•Pressure Grades: PN10, PN16, PN25, PN40
•Working Medium: Water, oil, gas, weak corrosive industrial media
•Size Range: DN15 ~ DN200 customizable
•Working Temperature: -20℃ ~ 380℃
•Installation Mode: Horizontal / Vertical
•Core Feature: Sensitive lifting, high pressure resistance, low noise
Application Scope
This stainless steel flanged lift check valve is widely used in high-standard industrial pipeline systems that require high sealing performance and stable one-way flow. It is perfectly suitable for high-pressure water supply systems, steam pipeline systems, petrochemical engineering, power plant equipment, metallurgical pipelines, pharmaceutical and food industrial transmission systems, municipal high-pressure water supply projects and precision water treatment equipment.
Why Choose ZTE VALVE Flanged Lift Check Valve
ZTE VALVE focuses on the R&D and production of high-precision industrial stainless steel valves. Each flanged lift check valve undergoes precision machining, strict pressure resistance testing and sealing performance testing before delivery. We abandon rough processing technology and strictly control every production detail to ensure stable pressure resistance, sensitive action and no leakage of each valve. With reliable product quality, flexible customization services and efficient global delivery capability, our products are sold to Europe, Southeast Asia, the Middle East and other global markets, winning professional recognition from engineering and trading customers.
The Flanged Lift Check Valve is a precision one-way flow control valve independently developed by ZTE VALVE, designed specifically for high-pressure, high-speed and stable fluid pipeline working conditions. Different from swing check valves, this lift-type check valve adopts a vertical up-and-down lifting disc structure, which relies on fluid pressure to lift the valve disc for medium circulation and uses gravity and reverse medium pressure to achieve automatic closing.
Manufactured from high-purity stainless steel, the valve body features integrated forging, compact internal structure and ultra-high sealing accuracy. Equipped with standard flange connection, it is suitable for vertical and horizontal pipeline installation. The lift check valve delivers more sensitive response, better pressure resistance and tighter sealing performance than conventional swing check valves, making it the preferred anti-backflow valve for high-precision industrial pipeline systems.
Core Product Features & Unique Advantages
•Unique Vertical Lift Structure — Adopts vertical lifting valve disc design with precise movement track, no swing deviation. The opening and closing action is more sensitive and stable, perfectly adapting to high-speed fluid flow and frequent pressure fluctuation working conditions.
•Ultra-Tight no Leakage Sealing — Matched with precision lapped sealing surface and high-performance sealing components, the valve disc fits closely with the valve seat. It achieves complete no leakage under rated pressure, effectively avoiding medium backflow and pipeline pressure loss.
•Superior High-Pressure Resistance — Integrally forged stainless steel valve body with thickened wall structure, supporting PN10, PN16, PN25 and PN40 multi-pressure grades. It can operate stably for a long time in high-pressure industrial pipelines without deformation or failure.
•Low Vibration & Quiet Operation — Compared with swing check valves, the lift structure has no swing impact during operation, effectively reducing pipeline vibration, noise and water hammer phenomenon, protecting pipeline and supporting equipment.
•Strict Material Craftsmanship — Made of high-quality stainless steel with excellent anti-corrosion, oxidation and rust resistance. It is compatible with clean water, oil, gas and weak corrosive media, adapting to complex industrial working environments.
•Dual Installation Methods — Supports both horizontal and vertical pipeline installation with strong adaptability. Standard flange connection ensures firm installation, convenient disassembly and easy daily inspection.
•Durable & Low Maintenance — Simple internal transmission structure, fewer vulnerable parts, stable mechanical performance and long service life. It greatly reduces later maintenance frequency and engineering operation costs.
Technical Specifications
•Product Name: Flanged Lift Check Valve
•Material: High-quality Stainless Steel (CF8, CF8M)
•Connection Type: Standard Flange
•Pressure Grades: PN10, PN16, PN25, PN40
•Working Medium: Water, oil, gas, weak corrosive industrial media
•Size Range: DN15 ~ DN200 customizable
•Working Temperature: -20℃ ~ 380℃
•Installation Mode: Horizontal / Vertical
•Core Feature: Sensitive lifting, high pressure resistance, low noise
Application Scope
This stainless steel flanged lift check valve is widely used in high-standard industrial pipeline systems that require high sealing performance and stable one-way flow. It is perfectly suitable for high-pressure water supply systems, steam pipeline systems, petrochemical engineering, power plant equipment, metallurgical pipelines, pharmaceutical and food industrial transmission systems, municipal high-pressure water supply projects and precision water treatment equipment.
Why Choose ZTE VALVE Flanged Lift Check Valve
ZTE VALVE focuses on the R&D and production of high-precision industrial stainless steel valves. Each flanged lift check valve undergoes precision machining, strict pressure resistance testing and sealing performance testing before delivery. We abandon rough processing technology and strictly control every production detail to ensure stable pressure resistance, sensitive action and no leakage of each valve. With reliable product quality, flexible customization services and efficient global delivery capability, our products are sold to Europe, Southeast Asia, the Middle East and other global markets, winning professional recognition from engineering and trading customers.
