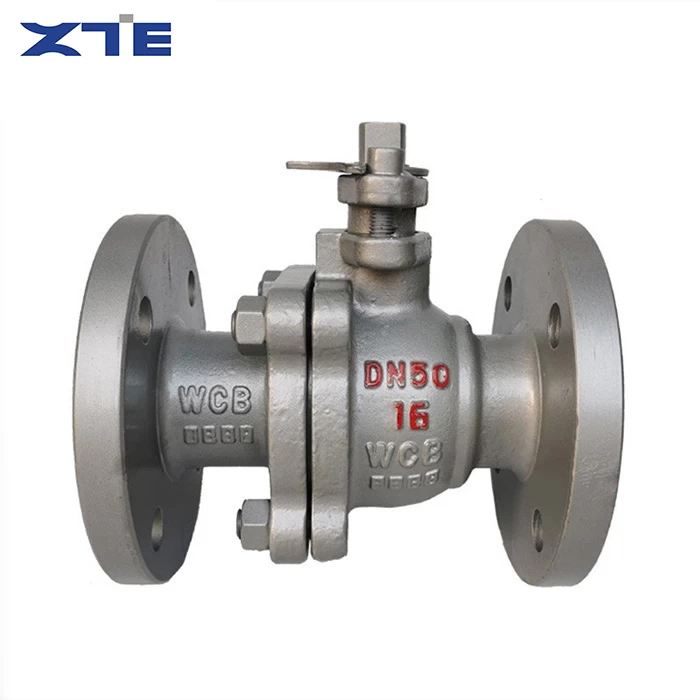

Flanged Floating Ball Valve
Generate QR code
-
When You'll Get It:Sep 23 - Sep 27
-
Delivery Time: If in stocks, delivery within 24 hours; For customized batch orders, usually around 20 days.
Product description
Shipping & Return
Product Overview
The Flanged Floating Ball Valve is a widely adopted industrial pipeline control valve designed for flexible on-off and flow regulation operations. Different from gate valves and check valves used for single isolation or anti-backflow functions, this floating ball valve utilizes a free-floating ball core structure. Under medium pressure, the ball disc automatically floats and presses tightly against the outlet sealing seat, achieving reliable bidirectional sealing performance.
Manufactured with high-grade stainless steel or carbon steel materials and standard flange connection structure, the valve delivers stable mechanical performance and excellent corrosion resistance. The full bore internal design ensures straight-through fluid passage with minimal flow resistance. Featuring flexible 90-degree quick switching, simple operation and long service life, the flanged floating ball valve serves as an ideal general-purpose control solution for water, oil, gas and mild corrosive industrial medium pipelines.
Key Features & Exclusive Advantages
•Unique Floating Ball Sealing Structure — The ball core is not fixed and can float freely under medium pressure. It automatically compensates sealing clearance and fits closely with the valve seat, effectively solving sealing failure caused by pressure fluctuation and temperature change.
•Bidirectional No Leakage Shutoff — Realizes reliable tight sealing in both forward and reverse flow directions. No medium leakage occurs under rated working pressure, ensuring safe and stable pipeline isolation and cut-off.
•Full Bore Straight-Through Flow Channel — The inner diameter is consistent with the pipeline caliber without flow shrinkage or dead angle. When fully opened, it provides ultra-low flow resistance, reducing pipeline energy consumption and fluid transmission loss.
•Fast 90-Degree Switching Operation — Compared with gate valves and globe valves with long stroke switching, the floating ball valve only requires 90-degree rotation to complete full opening and closing, greatly improving pipeline operation efficiency.
•Standard Flange Connection — Equipped with international standard flanges for firm installation, stable bearing capacity and convenient disassembly. It is easy to cooperate with pipeline maintenance, system debugging and equipment replacement.
•Excellent Medium Adaptability — Premium stainless steel body effectively resists rust, oxidation and weak chemical corrosion. It is suitable for water supply, oil, gas and various industrial circulating media.
•Self-Cleaning Flow Channel Design — The smooth spherical surface and straight-through runner prevent dirt accumulation and medium deposition. The valve has strong anti-blocking ability and maintains stable performance after long-term operation.

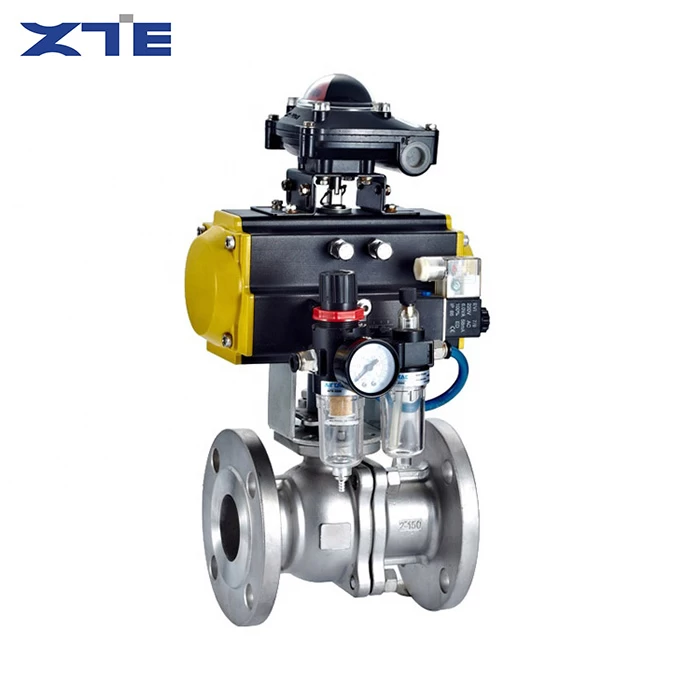

•Multiple Drive Options — Supports manual handwheel operation, electric drive and pneumatic drive customization, adapting to manual on-site control and automatic intelligent pipeline systems.

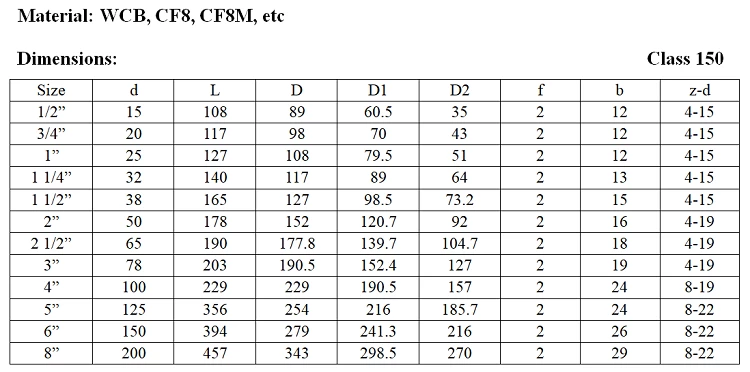

Technical Specifications
•Product Name: Flanged Floating Ball Valve
•Main Material: Stainless Steel / Carbon Steel Optional
•Connection Type: Standard Flange
•Pressure Grade: PN16, PN25, PN40, Class150, Class300
•Working Medium: Water, oil, natural gas, industrial circulating fluid, weak corrosive medium
•Size Range: DN15 ~ DN300
•Working Temperature: -20℃ ~ 350℃
•Structure Feature: Floating ball core, full bore, bidirectional sealing
•Operation Mode: Manual / Electric / Pneumatic
Application Scope
This flanged floating ball valve is widely used in general industrial and municipal pipeline systems requiring frequent switching and flexible flow control. Typical application scenarios include petrochemical transmission pipelines, urban water supply and drainage systems, heating and thermal engineering, industrial circulating water lines, gas supply pipelines, food and pharmaceutical fluid systems, and mechanical equipment supporting pipelines. It is a versatile and cost-effective pipeline control valve for multiple industrial fields.
Why Choose ZTE VALVE Flanged Floating Ball Valve
ZTE VALVE insists on precision manufacturing of industrial ball valves. Each flanged floating ball valve undergoes strict body strength testing, floating ball flexibility testing and bidirectional sealing performance testing before delivery. We optimize the floating ball matching tolerance and valve seat sealing structure to ensure stable switching sensitivity and long-term zero-leakage performance. With reliable factory quality, flexible customization solutions and complete pre-sales and after-sales technical support, our ball valves are exported to global markets and widely recognized by engineering contractors and distributors.
The Flanged Floating Ball Valve is a widely adopted industrial pipeline control valve designed for flexible on-off and flow regulation operations. Different from gate valves and check valves used for single isolation or anti-backflow functions, this floating ball valve utilizes a free-floating ball core structure. Under medium pressure, the ball disc automatically floats and presses tightly against the outlet sealing seat, achieving reliable bidirectional sealing performance.
Manufactured with high-grade stainless steel or carbon steel materials and standard flange connection structure, the valve delivers stable mechanical performance and excellent corrosion resistance. The full bore internal design ensures straight-through fluid passage with minimal flow resistance. Featuring flexible 90-degree quick switching, simple operation and long service life, the flanged floating ball valve serves as an ideal general-purpose control solution for water, oil, gas and mild corrosive industrial medium pipelines.
Key Features & Exclusive Advantages
•Unique Floating Ball Sealing Structure — The ball core is not fixed and can float freely under medium pressure. It automatically compensates sealing clearance and fits closely with the valve seat, effectively solving sealing failure caused by pressure fluctuation and temperature change.
•Bidirectional No Leakage Shutoff — Realizes reliable tight sealing in both forward and reverse flow directions. No medium leakage occurs under rated working pressure, ensuring safe and stable pipeline isolation and cut-off.
•Full Bore Straight-Through Flow Channel — The inner diameter is consistent with the pipeline caliber without flow shrinkage or dead angle. When fully opened, it provides ultra-low flow resistance, reducing pipeline energy consumption and fluid transmission loss.
•Fast 90-Degree Switching Operation — Compared with gate valves and globe valves with long stroke switching, the floating ball valve only requires 90-degree rotation to complete full opening and closing, greatly improving pipeline operation efficiency.
•Standard Flange Connection — Equipped with international standard flanges for firm installation, stable bearing capacity and convenient disassembly. It is easy to cooperate with pipeline maintenance, system debugging and equipment replacement.
•Excellent Medium Adaptability — Premium stainless steel body effectively resists rust, oxidation and weak chemical corrosion. It is suitable for water supply, oil, gas and various industrial circulating media.
•Self-Cleaning Flow Channel Design — The smooth spherical surface and straight-through runner prevent dirt accumulation and medium deposition. The valve has strong anti-blocking ability and maintains stable performance after long-term operation.
•Multiple Drive Options — Supports manual handwheel operation, electric drive and pneumatic drive customization, adapting to manual on-site control and automatic intelligent pipeline systems.
Technical Specifications
•Product Name: Flanged Floating Ball Valve
•Main Material: Stainless Steel / Carbon Steel Optional
•Connection Type: Standard Flange
•Pressure Grade: PN16, PN25, PN40, Class150, Class300
•Working Medium: Water, oil, natural gas, industrial circulating fluid, weak corrosive medium
•Size Range: DN15 ~ DN300
•Working Temperature: -20℃ ~ 350℃
•Structure Feature: Floating ball core, full bore, bidirectional sealing
•Operation Mode: Manual / Electric / Pneumatic
Application Scope
This flanged floating ball valve is widely used in general industrial and municipal pipeline systems requiring frequent switching and flexible flow control. Typical application scenarios include petrochemical transmission pipelines, urban water supply and drainage systems, heating and thermal engineering, industrial circulating water lines, gas supply pipelines, food and pharmaceutical fluid systems, and mechanical equipment supporting pipelines. It is a versatile and cost-effective pipeline control valve for multiple industrial fields.
Why Choose ZTE VALVE Flanged Floating Ball Valve
ZTE VALVE insists on precision manufacturing of industrial ball valves. Each flanged floating ball valve undergoes strict body strength testing, floating ball flexibility testing and bidirectional sealing performance testing before delivery. We optimize the floating ball matching tolerance and valve seat sealing structure to ensure stable switching sensitivity and long-term zero-leakage performance. With reliable factory quality, flexible customization solutions and complete pre-sales and after-sales technical support, our ball valves are exported to global markets and widely recognized by engineering contractors and distributors.
