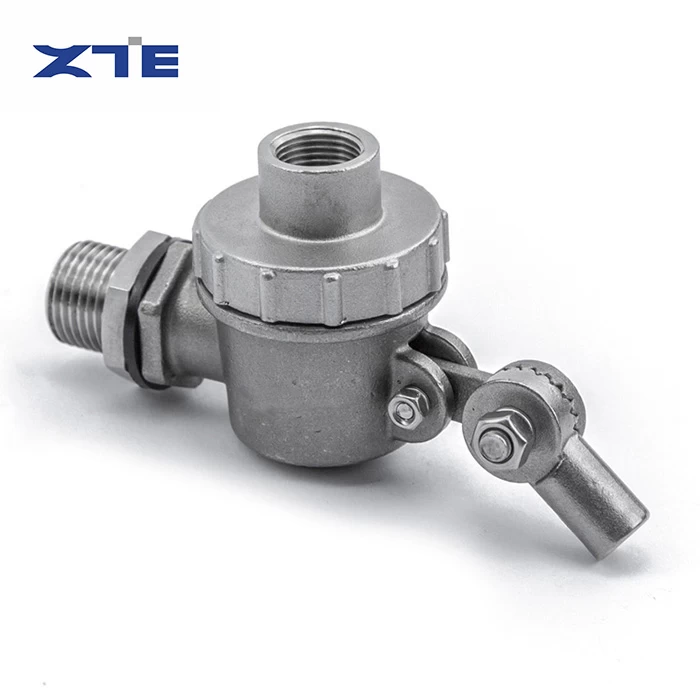

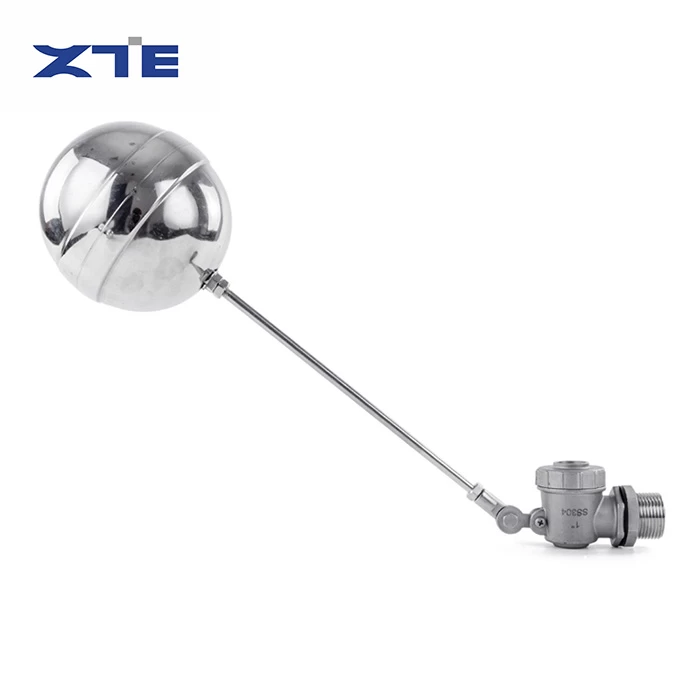

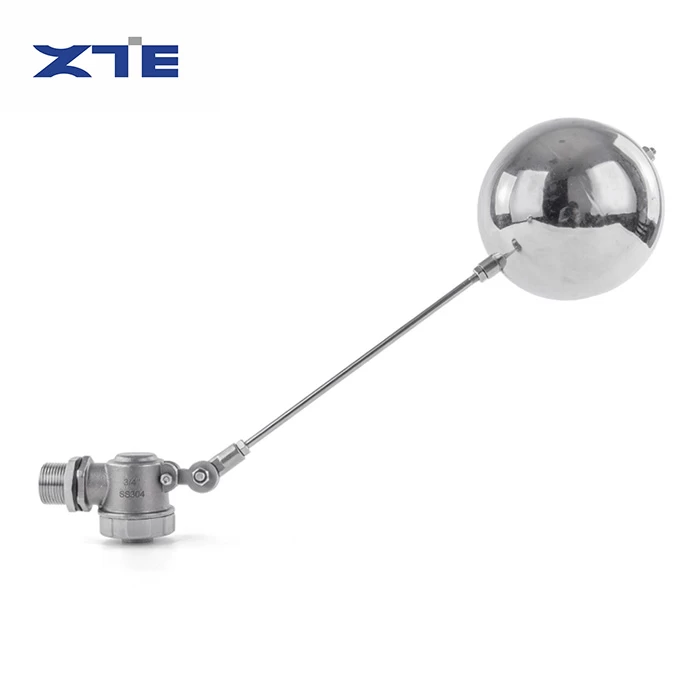

High Pressure PN16 Threaded Float Valve
Generate QR code
-
When You'll Get It:Sep 23 - Sep 27
-
Delivery Time: If in stocks, delivery within 24 hours; For customized batch orders, usually around 20 days.
Product description
Shipping & Return
Product Overview
The High Pressure PN16 Threaded Float Valve is a heavy-duty automatic water level control valve independently developed and manufactured by ZTE VALVE. Rated for PN16 (1.6MPa) working pressure, this threaded float valve is upgraded on the basis of ordinary float valves, featuring high pressure resistance, stable sealing performance and strong environmental adaptability. Made of high-quality stainless steel material, the valve effectively resists rust, corrosion and water hammer impact, ensuring long-term stable operation in high-pressure industrial pipeline environments.
Adopting standard threaded connection, the product realizes fast installation, convenient disassembly and easy daily maintenance. It can automatically sense and adjust the water level: when the water level drops, the valve opens to replenish water; when the water level reaches the preset height, the valve closes tightly to prevent overflow. It is an ideal automatic control component for high-pressure water supply and storage systems.
Core Product Features
•PN16 High Pressure Resistance: Rated at 1.6MPa working pressure, far exceeding ordinary float valves, suitable for high-pressure industrial pipeline working conditions, no leakage or deformation under rated pressure.
•Premium Stainless Steel Material: The whole valve body is made of high-quality stainless steel, with excellent anti-corrosion, anti-rust and wear-resistant performance, adapting to various water quality environments and extending service life greatly.
•Standard Threaded Connection: Equipped with standard internal and external threads, compatible with mainstream pipeline standards, realizing quick installation, firm connection and no water leakage.
•Fully Automatic Water Level Control: Mechanical floating ball induction design, intelligent automatic water feeding and stop, no manual operation required, effectively avoiding water overflow and waste.
•Stable Sealing & Water Hammer Resistance: Optimized internal sealing structure with slow closing design, effectively reducing water hammer impact and protecting pipeline system safety.
•Standard Compliance & Customization: Manufactured in accordance with international standards. Support OEM, ODM and non-standard size customization to meet personalized engineering needs.
•Low Failure & Easy Maintenance: Compact and reasonable structure, simple mechanical principle, low failure rate, convenient daily inspection and maintenance, saving operating costs.
Technical Specifications
•Pressure Rating: PN16 (1.6MPa)

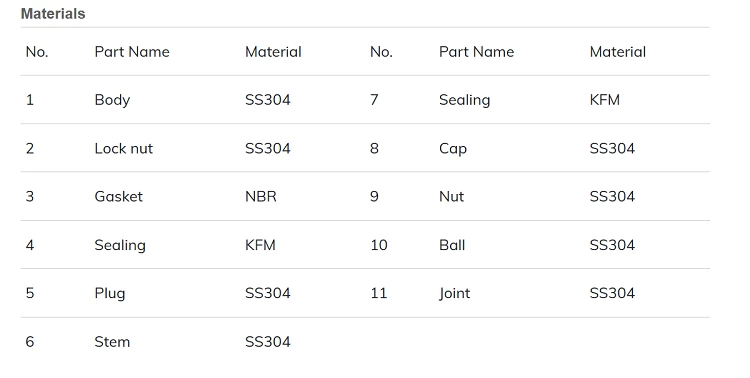

•Main Material: Stainless Steel
•Connection Type: Threaded (BSP/NPT customizable)
•Working Medium: Clean water, industrial water
•Working Temperature: 0℃ - 100℃

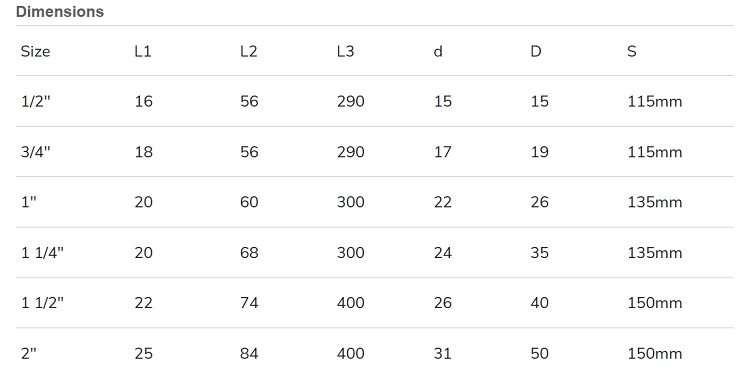

•Size Range: 1/2", 3/4", 1", 1.25", 1.5", 2" (custom sizes available)
•Sealing Performance: no leakage under rated working pressure
Application Scope
This PN16 high pressure threaded float valve is widely used in high-pressure water supply scenarios that require strict water level control and pressure resistance. It is perfectly applicable to industrial water tanks, high-pressure water supply pipelines, cooling tower systems, water treatment projects, chemical industry, metallurgy, pharmaceutical, food processing, municipal water supply and drainage, and building plumbing systems.
Why Choose ZTE VALVE PN16 Threaded Float Valve
As a professional stainless steel valve manufacturer located in Yuhuan, the famous valve capital of China, ZTE VALVE has complete production equipment and strict quality inspection system. All PN16 high pressure float valves undergo pressure testing, sealing testing and aging testing before delivery to ensure stable high-pressure resistance and reliable quality. We support factory direct sales, customized processing, fast delivery and comprehensive pre-sales and after-sales services, providing cost-effective high-pressure valve solutions for global industrial customers.
